5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Mahsulot nomi: Street Light tanasi
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Suv o'tkazmaydigan indeks: IP66 IP67
Zilzilaga chidamlilik indeksi: IK08 IK09
Ishlash harorati (℃): -20-60
Yuzaki rang: to'q kulrang, och kulrang, qora, moslashtirilgan va boshqalar
Contain Accessories : Complete finished street lights
Mahsulot xususiyatlari
- Alyuminiy korpus ADC12 alyuminiy qolipdan yasalgan bo'lib, sirt korroziya va rangning mustahkamligini oldini olish uchun purkagich bilan ishlov beriladi.
- Sovuq va issiq havo o'rtasidagi konvektsiya foydasiga tezkor nazariya uchun keng maydonli radiatorli fin dizayni lampalarning yaxshi issiqlik tarqalishini saqlab turish va butun umr davomida yorug'likni oshirish.
- Chiroqni to'liq va birlashtirilgan holda saqlash uchun quvvat etkazib beruvchi qutisi.
- Changni oldini olish va suvning turg'unligini oldini olish uchun shamollatish dizayni engil uzoq umrga erishish uchun.

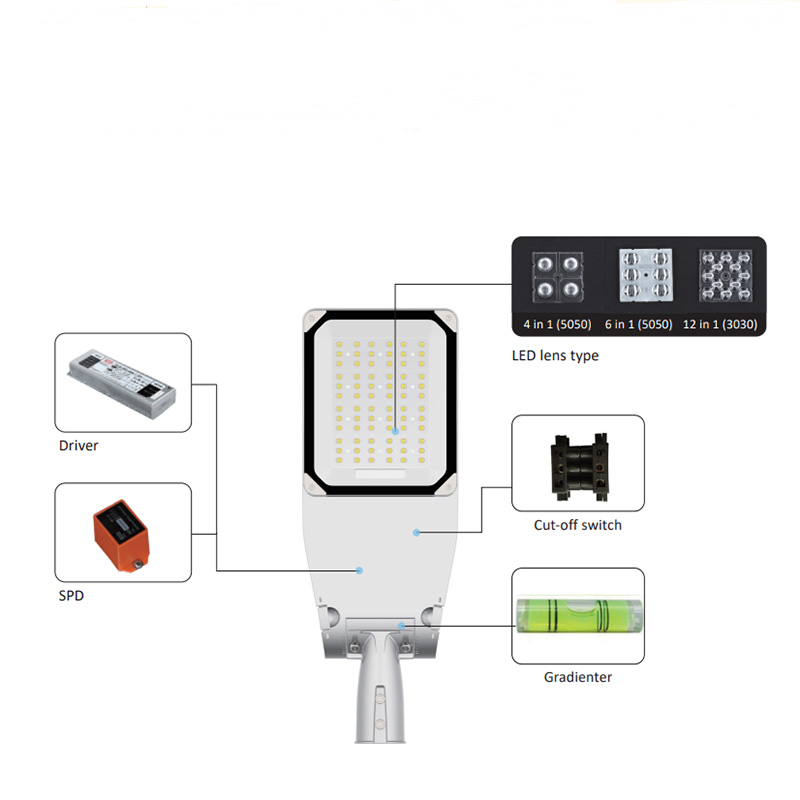

Product Details

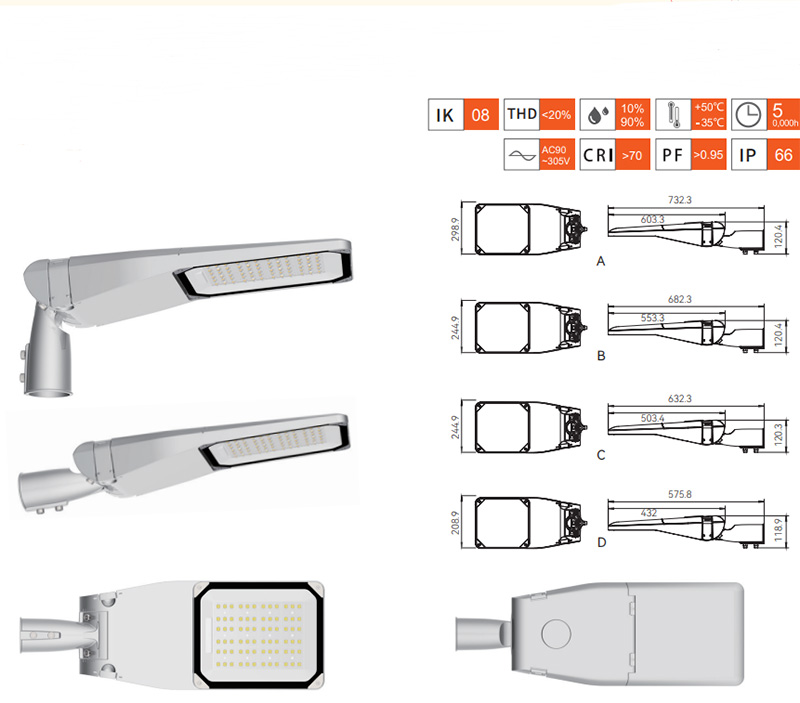

Product Size Chart
Spetsifikatsiya va o'lcham
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| IP klassi | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Material | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
ShenZhen EKI Lighting Industrial Co., Ltd. O'zimizning turli xil dizayn va texnologiyalarimiz bilan alyuminiy quyma LED yorug'lik korpusini ishlab chiqaruvchisi.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
